LTE-M, explained for people who deploy it.

What is LTE-M?

LTE-M (Long Term Evolution for Machines, also written LTE Cat-M1) is a cellular standard built for connected devices rather than phones. It was defined by 3GPP in Release 13 and runs on the same 4G LTE networks that carriers already operate. Instead of the 20 MHz channel a smartphone uses, an LTE-M device works inside a 1.4 MHz slice of the carrier's spectrum, which lets the modem be simpler, cheaper and far more frugal with power while still speaking standard LTE to the tower.

The result is a radio that reaches about 15 to 20 dB deeper than ordinary LTE, runs for years on a battery, and still moves enough data for firmware updates, images and voice. Every major North American carrier supports it, and a single SIM works across most of the world through roaming agreements. For Harmony Analytica that makes LTE-M the connection of choice for the site that has water but no gateway: a remote valve in a median, a tank at the far end of a ranch, a pump station three miles from the nearest building.

What makes LTE-M different

• Runs on existing towers. Carriers enable LTE-M with a software upgrade to the LTE base stations they already own, so coverage tracks the 4G footprint rather than a new build-out.
• Up to about 1 Mbps. Enough for over-the-air firmware, periodic images and bursts of logged data, which narrowband options cannot manage.
• Deep coverage. Coverage Enhancement modes repeat transmissions so a device in a basement, a valve box or a steel enclosure still reaches the network.
• Years on a battery. Power Saving Mode and extended sleep cycles let a sensor that reports a few times a day last five to ten years on a primary cell.
• Mobility and voice. Unlike NB-IoT, LTE-M supports hand-off between cells while connected and can carry VoLTE, which matters for trackers, vehicles and emergency call points.
• Carrier-grade security. The SIM, mutual authentication and encrypted links are the same ones that protect phone traffic.

How an LTE-M network is put together

An LTE-M deployment has four parts, and it helps to know which one owns which job when something needs troubleshooting.

The device (UE)

The sensor, valve controller or tracker contains an LTE-M modem, a microcontroller that runs the application, a SIM or eSIM that holds the subscriber identity and secret key, and an antenna. The modem does the cellular work; the microcontroller decides what to measure and when to send.

The base station (eNodeB)

The carrier's tower handles the radio link: it broadcasts the cell's identity, schedules when each device may transmit, measures signal quality and manages hand-offs as devices move. LTE-M shares the tower with phones but is scheduled into its own narrow slice of the channel.

The core network (EPC)

Behind the towers sits the Evolved Packet Core. Three of its elements matter for IoT: the MME (Mobility Management Entity) authenticates devices, tracks which area they are in and manages their sleep timers; the Serving Gateway routes packets between towers and the core; and the Packet Gateway assigns the device its IP address and connects it to the internet or to a private APN.

The application server

Once a packet leaves the Packet Gateway it is ordinary IP traffic. The device talks to a cloud platform over MQTT, CoAP or HTTPS, and that platform is where readings are stored, dashboards are drawn and alerts are sent. In our deployments this is MODURA or the customer's existing system, and the path from a tank in Michigan to a chart on a phone is device, tower, core, internet, platform.

How a device gets on the network

1. Cell search. On power-up the modem scans the bands it supports, finds the strongest LTE-M cell and reads its broadcast information.
2. Random access. The device asks the tower for a slot to talk and receives a temporary radio identity.
3. Attach request. The device sends its subscriber identity to the MME and asks to join the network.
4. Authentication. The core challenges the SIM, the SIM answers with a value only it can compute, and both sides prove they are genuine before any data flows.
5. Security setup. Session keys are derived and every later message is encrypted and integrity-protected.
6. Bearer and IP address. The Packet Gateway opens a data session and assigns the device an IP address, often on a private APN so it is unreachable from the public internet.
7. Data transfer. The application sends its readings and receives any commands or firmware, then the modem drops back to idle.

Two radio states describe the rest of the device's life. In RRC_CONNECTED the device has an active link and can move data immediately. In RRC_IDLE it has released the link but stays registered, listening for pages at agreed intervals. A well-configured sensor spends almost all of its time idle or asleep and only seconds a day connected.

Power saving: PSM and eDRX

Battery life on cellular is decided by how long the radio can stay off, not by how efficient it is while on. LTE-M gives the device two negotiated tools for that.

Power Saving Mode (PSM)

After a device finishes sending, it can tell the network it is going to sleep. It stays registered, so it does not have to re-attach when it wakes, but the radio is fully off and it cannot be reached. Two timers govern this: the active timer (T3324) sets how long the device listens for downlink after each transmission, and the periodic update timer (T3412) sets how long it may sleep before checking in, which can be extended to many days. A tank level sensor that wakes every six hours, sends one reading and sleeps again spends 99.9 percent of its life drawing microamps.

Extended Discontinuous Reception (eDRX)

Some devices need to be reachable, such as a valve controller that must accept an "open now" command. eDRX keeps the device registered and listening, but stretches the interval between listening windows from milliseconds to seconds or minutes. The network holds any downlink message until the next window. The trade is simple: a longer eDRX cycle saves more power and adds more delay before a command lands.

Choosing the right setting

Most of our sites mix the two. Tank and soil sensors that only report use deep PSM. Valve controllers and pump-station monitors that must take commands use eDRX with a window matched to how fast an operator needs a response. Getting these timers right, and confirming the carrier honors the requested values, is one of the first things we check when a battery is dying early.

Mobility, hand-off and roaming

LTE-M inherited real mobility from LTE. While connected, a device measures its own cell and its neighbors, reports when a neighbor becomes stronger, and the network hands the session over to the new tower with packets forwarded so nothing is lost. That is why LTE-M, not NB-IoT, is used for equipment that moves: golf carts, service vehicles, portable pumps and asset trackers.

In idle mode the device handles this itself through cell reselection, picking the best cell as it listens for pages and sending a Tracking Area Update when it crosses into a new group of cells. IoT devices measure less often than phones and allow a larger margin before switching, which prevents "ping-pong" between two towers and saves battery.

Roaming works across carriers that have LTE-M agreements in place, and most of North America, Europe, Australia and much of Asia is covered. Fixed sites still benefit: a sensor on a border between two carriers' footprints can attach to whichever is stronger. We verify LTE-M specifically, not just "4G," is live at each site before hardware is ordered, because a carrier can have LTE coverage without having enabled LTE-M on that tower.

Security and authentication

Every LTE-M connection is protected by the same layered security as a phone call.

• SIM-held credentials. The subscriber identity and a secret key live inside the SIM and never leave it. Cloning the device does not clone the key.
• Mutual authentication. The network challenges the SIM and the SIM verifies the network in return, so a device will not attach to a rogue tower.
• Encryption and integrity. Session keys derived from that exchange encrypt both the control signaling and the user data, using standard algorithms such as AES and SNOW 3G, and every message carries an integrity check so tampered packets are discarded.
• Private APNs. Devices can be placed on a carrier APN with no public IP address, reachable only from the customer's platform.
• Application-layer security. On top of the cellular link we run TLS for MQTT and HTTPS, or DTLS for CoAP, with per-device certificates, so data stays encrypted end to end even inside the carrier core.

LTE-M vs NB-IoT vs LoRaWAN

All three are low-power wide-area technologies, and we deploy all three. They are complementary, not competitors.

	LTE-M	NB-IoT	LoRaWAN
Spectrum	Licensed, carrier LTE	Licensed, carrier LTE	Unlicensed ISM (915 MHz in North America)
Channel width	1.4 MHz	200 kHz	125 to 500 kHz
Data rate	Up to about 1 Mbps	Tens of kbps	0.3 to 27 kbps
Mobility	Full hand-off while connected	Idle reselection only	No hand-off; any gateway in range receives
Voice	VoLTE supported	No	No
Who runs the network	Carrier	Carrier	You, or a public operator
Per-device cost	Modem plus monthly plan	Modem plus monthly plan	Radio only, no subscription on a private network
Best for	Scattered or moving assets, firmware updates, sites with no gateway	Dense static meters with tiny payloads	Campuses, courses, districts with many sensors per gateway

Our rule of thumb: when a property has dozens of sensors within a few miles, a private LoRaWAN network costs less per point and puts the data under your control. When you have one or two devices at a site, or the device moves, LTE-M avoids building a network for a single sensor. Many of our deployments use both, with LoRaWAN across the site and LTE-M as the backhaul for the gateway or for the outlying assets the gateway cannot reach.

Where we use LTE-M

• Remote irrigation valves in roadway medians and parks where there is no power, no controller wire and no gateway.
• Tank level, pressure and flow on well pads, tank batteries and pump stations spread across a service territory.

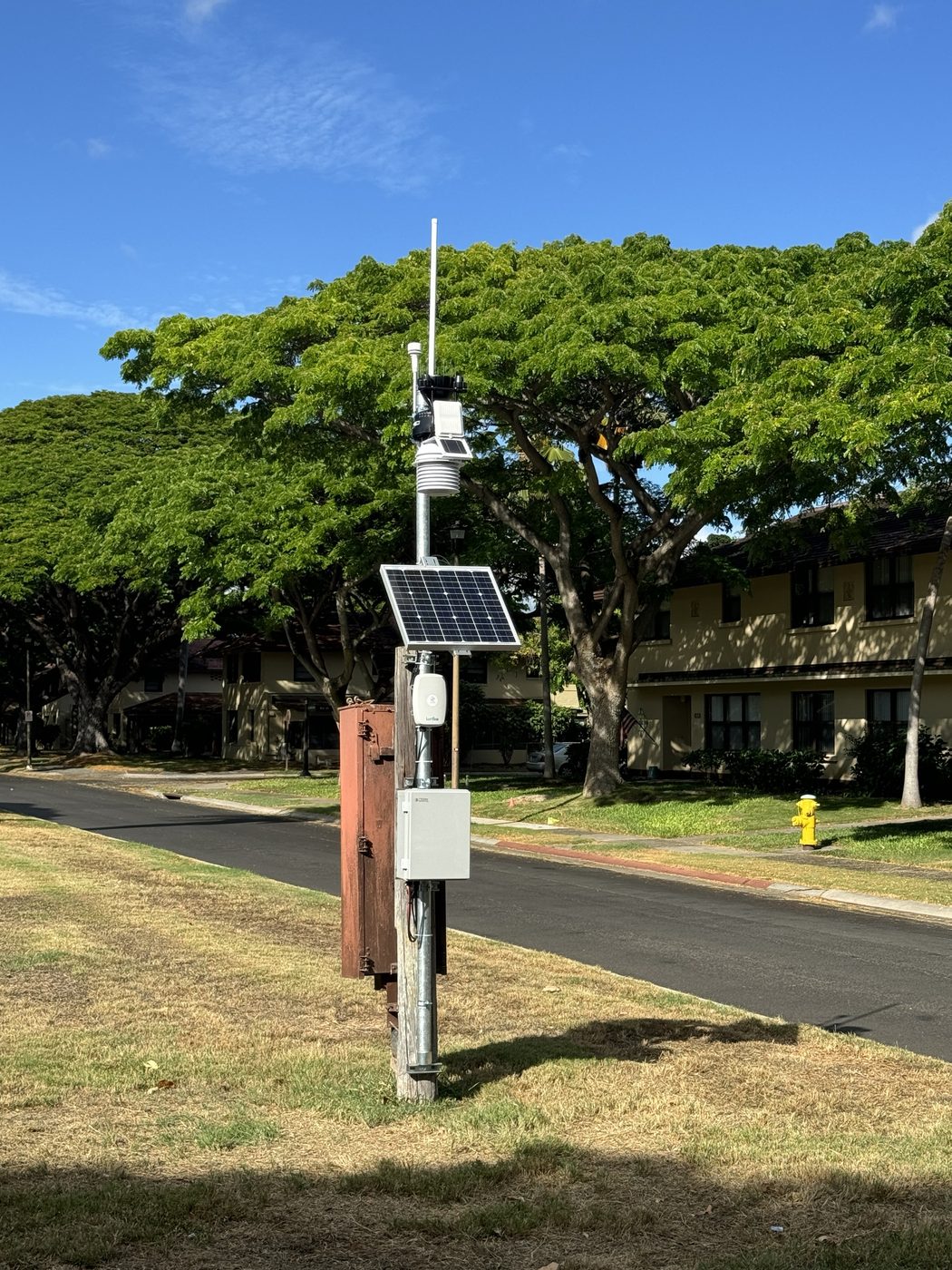

• LoRaWAN gateway backhaul where a site has no Ethernet, so the gateway itself reaches the cloud over LTE-M.
• Vehicle and equipment tracking for golf carts, mowers, service trucks and portable pumps.
• Utility and municipal assets such as lift stations, backflow preventers and stormwater structures that are visited rarely.
