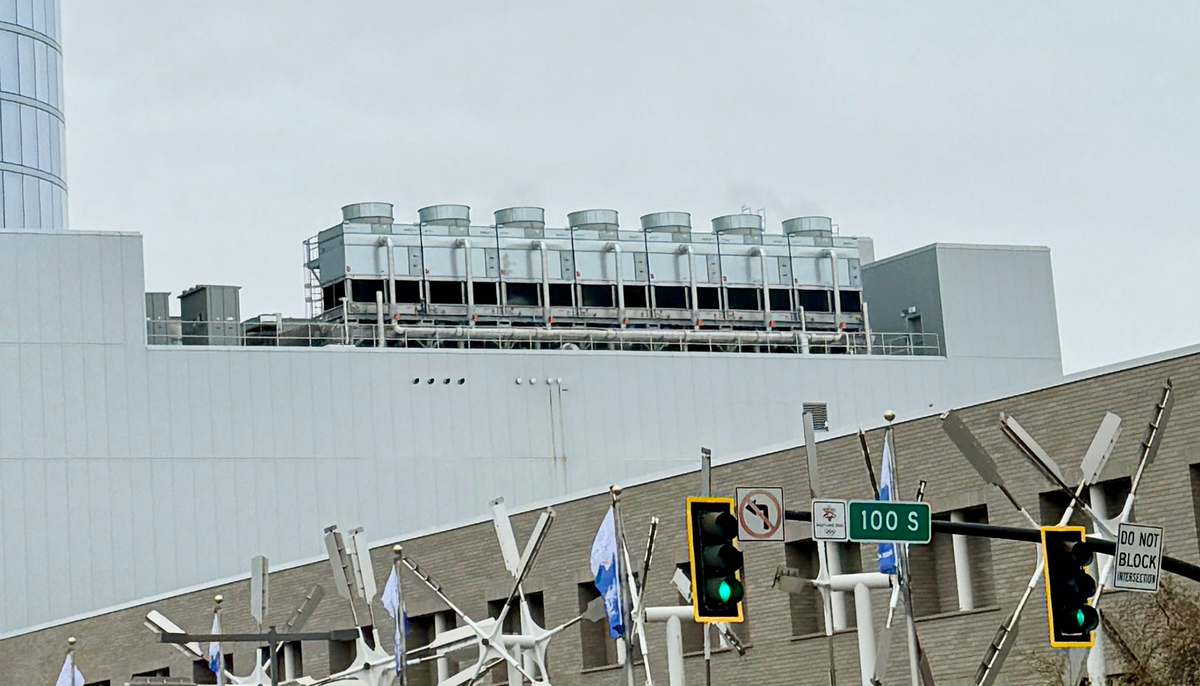

What is an HVAC Cooling Tower?

HVAC (Heating, Ventilation, and Air Conditioning) cooling towers are an essential component in air conditioning systems, particularly for large commercial or industrial buildings. They provide the necessary cooling for the heated water or steam generated by the HVAC system. A cooling tower is a device that extracts heat from water by allowing a small percentage of the water to evaporate into a moving air stream. This process effectively removes heat from the water, and the cooled water is then recirculated back to the HVAC system. In this technical summary, we will discuss the different types of HVAC cooling towers, their components, and the various aspects of their operation.

Types of HVAC Cooling Towers

HVAC cooling towers can be classified into two main types: open and closed circuit cooling towers. Open circuit cooling towers operate by direct contact between the water to be cooled and the air. Closed circuit cooling towers, on the other hand, operate by indirect contact between the water to be cooled and the air. Each type of cooling tower has its advantages and disadvantages.

Open Circuit Cooling Towers

Open circuit cooling towers use ambient air to cool the water, which is then recirculated back to the HVAC system. The tower is designed to maximize the surface area of water exposed to the air, facilitating heat transfer through evaporation. As the water flows through the tower, a small percentage of it is continuously sprayed over the tower's fill material. The fill material's function is to increase the surface area of the water, which enhances evaporation and heat transfer.

One of the primary benefits of open circuit cooling towers is that they are generally less expensive to install and maintain than closed circuit cooling towers. However, open circuit cooling towers require more frequent cleaning and maintenance, and their operation can be impacted by external factors such as weather conditions and the quality of the air entering the tower.

Closed Circuit Cooling Towers

Closed circuit cooling towers are designed to prevent direct contact between the water and the air, and operate using a heat exchanger to transfer heat from the water to the air. The water to be cooled circulates through the heat exchanger, where heat is removed and transferred to the air. The air, which is drawn by a fan through the heat exchanger, carries away the heat from the water, which is then recirculated back to the HVAC system.

Closed circuit cooling towers are generally more expensive than open circuit cooling towers due to their more complex design and construction. However, they offer several advantages, such as reduced maintenance requirements, greater control over the quality of the water, and increased efficiency in extreme weather conditions.

Components of HVAC Cooling Towers

HVAC cooling towers are composed of several critical components, each of which plays an essential role in the tower's operation.

Fan

The fan is the component responsible for drawing air into the cooling tower and expelling it back out into the atmosphere. The fan's size and capacity are determined by the size of the cooling tower, and it is typically located at the top of the tower.

Fill Material

Fill material is a series of plastic or metal sheets designed to maximize the surface area of the water exposed to the air. The fill material is arranged in a series of layers, creating a honeycomb-like structure. The purpose of the fill material is to increase the amount of water exposed to the air, promoting evaporation and heat transfer.

Water Distribution System

The water distribution system is responsible for distributing water evenly across the fill material. The distribution system is composed of nozzles or spray heads that distribute water over the fill material.

Drift Eliminators

Drift eliminators are responsible for reducing the amount of water lost through the cooling tower's exhaust air stream. They are usually located near the top of the tower and are designed to capture water droplets and return them to the tower.

Heat Exchanger

The heat exchanger is a critical component of closed circuit cooling towers. It is responsible for transferring heat from the water to the air. The heat exchanger consists of a series of tubes or plates through which the water to be cooled flows. The air is drawn through the heat exchanger by a fan, and heat is transferred from the water to the air.

Water Treatment System

Water treatment systems are essential in HVAC cooling towers to maintain the quality of the water and prevent the buildup of bacteria and other contaminants. Water treatment systems typically include chemical treatments, such as chlorine, to kill bacteria and other microorganisms. They may also include filters to remove sediment and other particles from the water.

Operation of HVAC Cooling Towers

The operation of HVAC cooling towers is complex and requires careful monitoring and maintenance to ensure efficient and reliable performance.

Water Flow Rate

The water flow rate is critical in HVAC cooling towers. It must be carefully monitored and adjusted to ensure that the water is flowing at the correct rate through the tower. If the flow rate is too low, the tower will not provide adequate cooling, while if the flow rate is too high, the tower's efficiency will be reduced.

Water Temperature

The water temperature is another critical factor in HVAC cooling tower operation. The tower must maintain a consistent temperature to ensure efficient cooling. If the water temperature is too high, the tower's efficiency will be reduced, while if the water temperature is too low, the tower may freeze in cold weather.

 Airflow Rate

The airflow rate is another critical factor in HVAC cooling tower operation. The tower must maintain a consistent airflow rate to ensure efficient heat transfer. If the airflow rate is too low, the tower's efficiency will be reduced, while if the airflow rate is too high, the tower may become unstable and vibrate excessively.

Maintenance

Regular maintenance is essential in HVAC cooling towers to ensure efficient and reliable performance. Maintenance tasks typically include cleaning the tower and its components, replacing worn or damaged parts, and inspecting the tower for signs of wear or damage. Regular maintenance can help prevent costly repairs and downtime and extend the tower's service life.

Summary

In summary, HVAC cooling towers are essential components of air conditioning systems in large commercial and industrial buildings. They provide the necessary cooling for the heated water or steam generated by the HVAC system. HVAC cooling towers come in two main types: 1) open circuit, and 2) closed circuit cooling towers, each with its advantages and disadvantages. HVAC cooling towers are composed of several critical components, each of which plays an essential role in the tower's operation. The operation of HVAC cooling towers is complex and requires careful monitoring and maintenance to ensure efficient and reliable performance. Regular maintenance is essential in HVAC cooling towers to prevent costly repairs and downtime and extend the tower's service life.
