A Beginner’s Guide to LoRa and LoRaWAN: Understanding the Technology and the Keys

If you’ve ever been curious about smart sensors—whether they’re measuring soil moisture, temperature, or even tracking your pet—chances are you’ve come across the terms LoRa and LoRaWAN. For someone just starting out, these acronyms can be confusing. What do they mean? How are they different? More importantly, why should you care about things like DevEUI, AppEUI, and AppKey? In this blog post, we’ll break down these concepts in a way that anyone can understand, helping you see how they fit together in the world of long-range, low-power communication.

What is LoRa?

Let’s begin with the basics: LoRa stands for “Long Range.” It’s a radio technology that allows devices to communicate with one another over a distance of several kilometers (in ideal conditions). This of this simply as "the long-range signal". The key benefits of LoRa are its ability to:

1. Send data over long distances
2. Use very little power
3. Penetrate obstacles like walls or trees relatively well (compared to some other wireless technologies)

Because of these benefits, LoRa is frequently used in battery-powered devices such as sensors and trackers that need to run for months—or even years—without recharging or replacing batteries.

Think of LoRa as the raw ability to send information wirelessly across distances. It’s like learning to speak a particular language. You’ve got the vocabulary and rules of grammar, but you haven’t decided on any specific protocol for how conversations should happen in real-world scenarios.



Then, What is LoRaWAN?

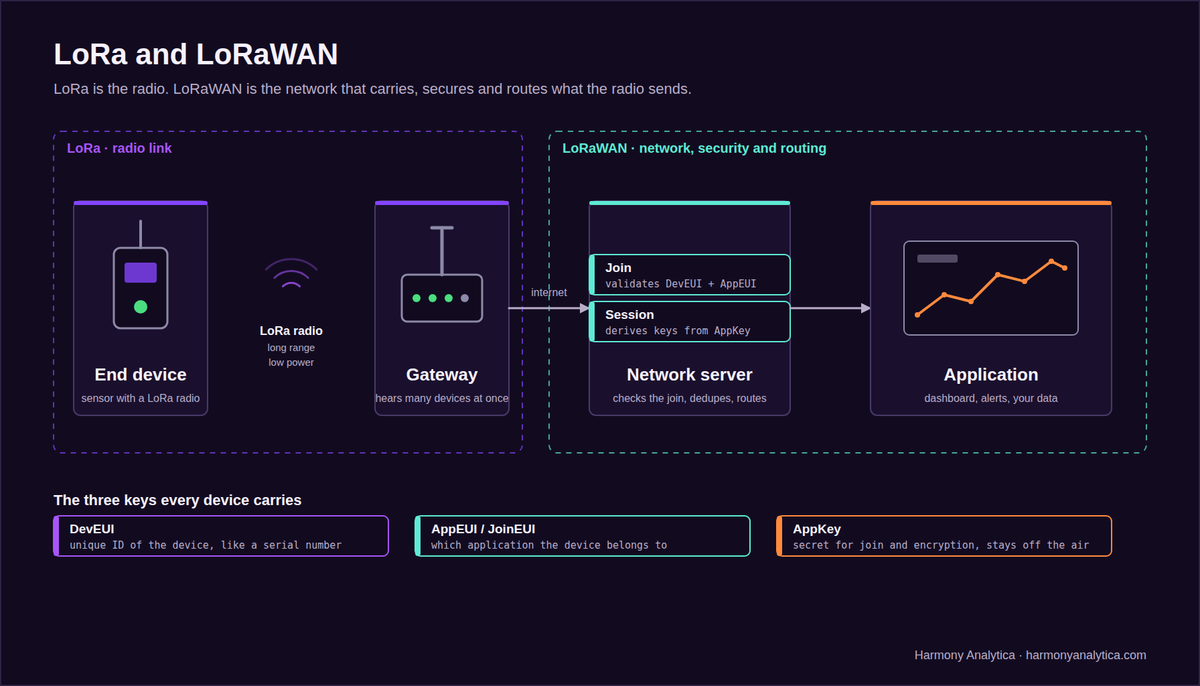

LoRaWAN is a specific set of rules (a network protocol) that organizes how LoRa devices talk to one another and to servers in the cloud. Think of this as the "network infrastructure layer". While LoRa is the physical layer (the radio part), LoRaWAN is the “higher-level” set of instructions and standards that govern:

1. How data is formatted
2. How devices join the network
3. How security is managed
4. How messages get routed from the end device (like a soil moisture sensor) to an application server (like your smartphone app or a cloud service)

LoRaWAN is designed to enable large networks of devices—often called the Internet of Things or IoT—to communicate with minimal human intervention. By following the LoRaWAN standard, devices can more easily talk to existing gateways and servers. Plus, manufacturers can build devices that will work on different public or private LoRaWAN networks around the world, rather than being locked to a custom, proprietary setup.



A Quick Analogy

• LoRa is like having the skill to speak a particular language. You know the words, you know how to form sentences, and you can transmit your voice across a room.
• LoRaWAN is like having a standardized conversation protocol in an international conference. Everyone who arrives knows exactly how to introduce themselves, how to raise a question, how to respond, and even how to leave the conversation when they’re done. It’s not just about speaking the language; it’s also about the rules of engagement.



Why Keys Matter: DevEUI, AppEUI, and AppKey

When it comes to LoRaWAN, you’ll often hear about three important “keys” or identifiers: DevEUI, AppEUI, and AppKey. If you’re a novice, these might sound daunting, but they’re actually quite simple.

1. DevEUI (Device EUI)
   Think of this like your device’s personal phone number. It’s a globally unique number that identifies your specific sensor. No two sensors in the world should share the same DevEUI. It’s how the network can tell your soil moisture sensor apart from the one your neighbor is using.

2. AppEUI (Application EUI)
   Imagine this as the “area code” or “group ID” that bundles devices under a certain application or project. If you’re deploying sensors for your personal greenhouse monitoring system, they might all share the same AppEUI, indicating that they belong to the same application environment.

3. AppKey (Application Key)
   This is essentially the secret handshake. It’s a cryptographic key used to encrypt and secure the communication during the “join” procedure. Only devices with the correct AppKey can join your LoRaWAN network and send data securely. Think of it as the password that keeps your communications private.



LoRa vs. LoRaWAN: Different Approaches

One big difference between a pure LoRa system and a LoRaWAN system is how you manage security, data structure, and network connections:

• LoRa (Point-to-Point)
  With a simple LoRa setup, you might have one sensor talking directly to a receiver. The security, if any, could be something you implement yourself—perhaps a basic form of encryption. You also decide how the data is formatted and how often it’s sent. This gives you a lot of freedom and flexibility, but it also means more complexity if you’re not experienced with setting up secure wireless communication.

• LoRaWAN (Managed Network)
  LoRaWAN solves many of these problems by providing a standardized way of handling data transmission, security, authentication, and device management. You don’t need to figure out how to encrypt your messages—LoRaWAN already has that built in via the AppKey and network-level keys. You don’t have to worry about how your sensor identifies itself—DevEUI and AppEUI take care of that.

For a single project with just a couple of devices, a custom LoRa solution might be enough. But if you want to scale up—say, deploying hundreds or thousands of sensors—LoRaWAN becomes extremely helpful. It’s a robust, secure framework that supports large networks of devices with minimal fuss.



How This Applies to Soil Moisture Sensors

Let’s bring this home with a concrete example: soil moisture sensors. Suppose you’re developing a new line of sensors that measure how much water is in the soil. You want them to be battery-powered and capable of sending data to your smartphone app every few hours.

• Using LoRaWAN
  Each sensor is programmed with a DevEUI (unique identifier), AppEUI (tells the network it’s part of your “soil sensor” application), and an AppKey (to ensure secure communication). When the sensor powers up, it automatically “joins” a LoRaWAN gateway if it’s in range. The gateway routes your data to the network server, which in turn sends it to your application server (the cloud platform or service you use). You don’t have to worry about the intricate details of encryption or building custom network protocols. It’s all handled by the standardized LoRaWAN layers.

• Using Pure LoRa
  You’d have to design how the sensor talks to the receiver, what frequency channels you’ll use, how you’ll encrypt the data, and how you’ll decode it on the receiving end. This can be fine for a small, DIY project, but it’s more work if you plan to scale up.



Final Thoughts

LoRa and LoRaWAN are both pivotal technologies in the Internet of Things landscape, providing the foundation for a wide range of applications—from agricultural sensors to smart city infrastructure. LoRa is the versatile radio technology that keeps power consumption and costs low, while LoRaWAN is the standardized protocol that handles large-scale deployment, security, and interoperability.

If you’re just dipping your toes into the IoT waters, don’t be intimidated by the jargon. At its core, this technology is simply about sending data over long distances with low power, and LoRaWAN is a blueprint that ensures devices stay secure, organized, and compatible with various networks and services. By understanding the basics of DevEUI, AppEUI, and AppKey, you’re already well on your way to building or deploying connected devices that can intelligently and securely report data—like your soil moisture readings—to wherever you need them.

In short, LoRa is the “how” of sending wireless signals over long distances, and LoRaWAN is the “what” and “why”: what to do with those signals and why a standardized approach makes your life easier. If you keep that simple idea in mind, you’ll have a solid starting point for your next IoT project.
